10 Floating Wall Shelves Small Space Ideas

Floating wall shelves are the ultimate architectural tool for small spaces, unlocking vertical storage without taking up a single square inch of floor area. In compact apartments, narrow hallways, tight kitchens, and cozy reading nooks, traditional bulky bookcases and storage credenzas overcrowd walkways and create visual weight. By contrast, clean-lined floating shelves draw the eye upward, highlighting ceiling height while providing functional organization.

The versatility of modern floating shelving lies in its structural engineering and material variety. From heavy-duty concealed steel bracket rods holding thick solid oak slabs to ultra-slim acrylic picture ledges, corner wraps, and integrated LED accent lighting, floating shelves adapt to awkward architectural dead zones.

Whether you are carving out a functional bedside landing pad, setting up an open kitchen spice station, or displaying a vertical library, these ten curated floating wall shelf concepts deliver installation blueprints, weight-bearing formulas, and production-ready visual prompts.

Why This Idea Is Trending & Flattering

• Zero-Footprint Floor Elevation: Leaves baseboards and floors completely unobstructed, creating sightlines that make tight rooms feel significantly larger.

• Captures Dead Vertical Space: Utilizes awkward vertical areas—such as above doorways, tight corners, over toilets, and behind desks.

• Custom Modular Adaptability: Shelves can be staggered, stacked vertically, or run continuously from wall to wall to fit any room dimension.

• High Weight-to-Depth Ratio: Modern hidden solid-steel bracket systems support 40 to 100+ lbs of books, ceramics, and dishware with no visible hardware.

• Multi-Functional Integration: Incorporates hanging clothing rods, built-in recessed LED lighting strips, underside wine glass tracks, and hidden slide-out drawers.

Materials, Bracket Systems & Load-Bearing Foundation Guide

Concealed Bracket Systems Compared

• Solid Steel Rod Backplates: A continuous flat steel plate screwed into multiple wall studs with welded 0.5-inch solid steel rods that slide into pre-drilled holes in the shelf core. Supports 50 to 100+ lbs per stud anchor.

• Keyhole Hardware & T-Brackets: Lightweight mounting plates recessed into the back edge of the shelf. Best for shallow display shelves and picture ledges holding under 20 lbs.

• French Cleats: Interlocking 45-degree beveled wood or aluminum cleats. Highly secure and ideal for custom box shelves, floating desks, and vanity ledges.

Core Dimension Standards

• Shallow Picture Ledges: 3.5 to 4 inches deep (ideal for frames, perfumes, and spices in narrow hallways).

• Standard Book & Decor Shelves: 8 to 10 inches deep (ideal for paperbacks, small potted plants, and art).

• Kitchen Dishware & Heavy Storage: 10 to 12 inches deep (requires solid wood and direct stud mounting).

• Vertical Spacing: Allow 10 to 12 inches between standard shelves for books; allow 15 to 18 inches for tall vases and trailing botanicals.

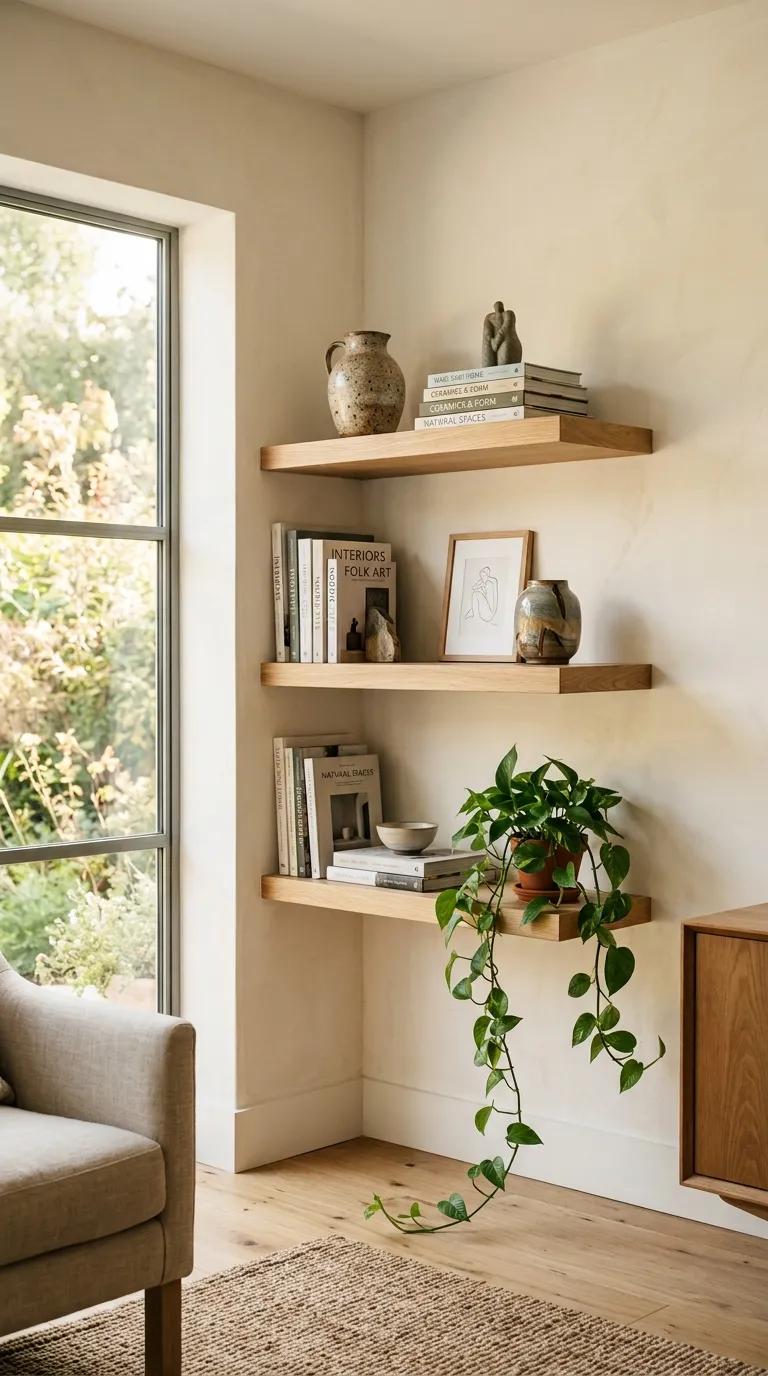

1. Wraparound Continuous Corner Floating Shelves

Concept Overview & Aesthetic Appeal

A seamless, 90-degree floating shelf system that hugs an interior room corner, connecting two intersecting walls into a cohesive, space-expanding display for books and ceramics.

Step-by-Step Execution Guide

• Measure the wall clearance on both sides of the corner (e.g., 24 inches on Wall A, 36 inches on Wall B).

• Cut two matching solid oak or walnut boards ($1.5text{ to }2text{ inches}$ thick) and miter the intersecting corner ends at a clean 45-degree angle.

• Mount continuous steel corner support rods directly into the corner wall studs.

• Join the mitered shelf pieces at the corner using internal wooden biscuits and wood glue, then slide the combined L-shape onto the steel rods.

• Seal with a matte clear polyurethane coat.

Pro Spatial Tip

Continuous corner shelves turn dead corner zones into architectural focal points while providing more linear display space than two isolated shelves.

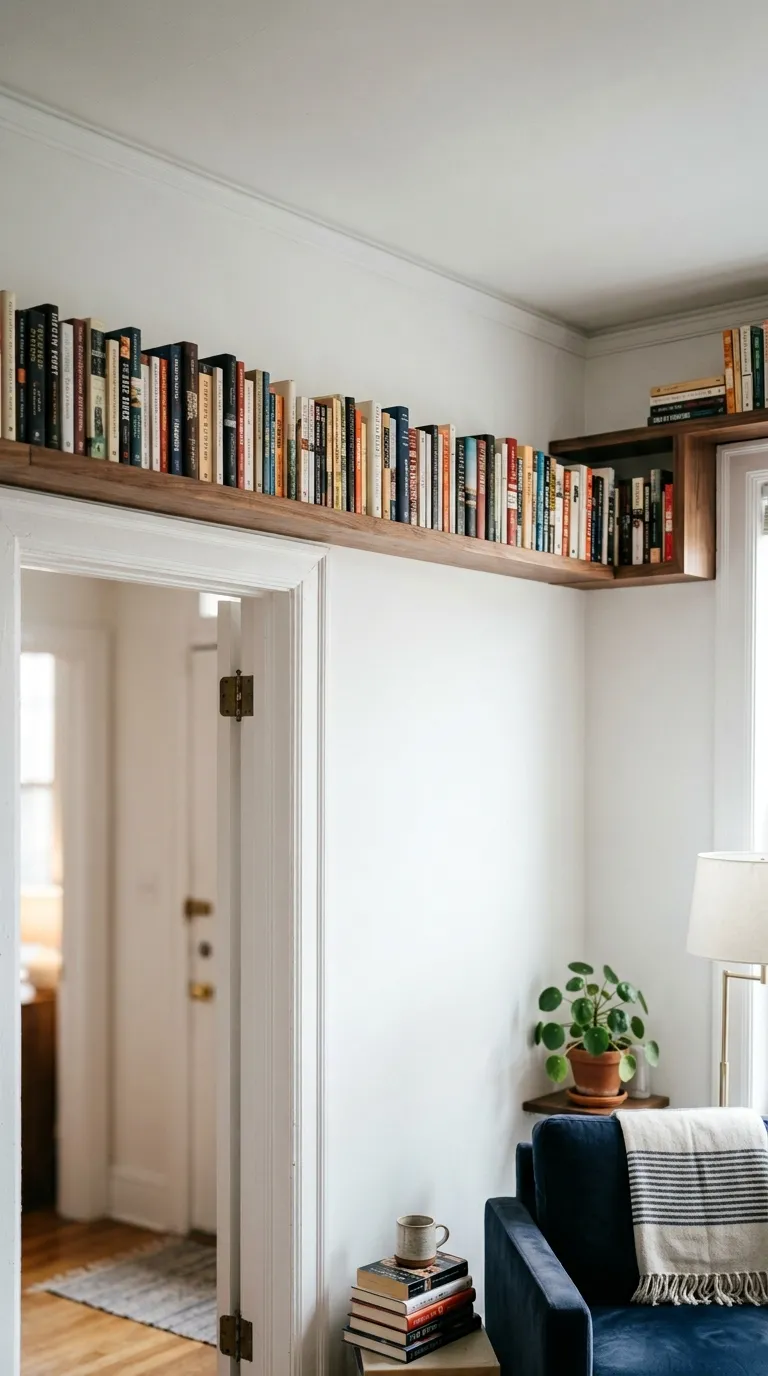

2. The Over-the-Door High-Perimeter Book Run

Concept Overview & Aesthetic Appeal

A single continuous shelf installed 12 inches below the ceiling, running above door frames and along the room perimeter to store hundreds of books without using any everyday living space.

Step-by-Step Execution Guide

• Locate wall studs above the doorway opening and along the upper perimeter wall.

• Mount heavy-duty concealed steel bracket rods into studs at 12 inches below the ceiling line.

• Slide a continuous 8-inch deep, 1.5-inch thick birch or pine floating shelf over the brackets.

• Anchor the shelf firmly to prevent forward tipping.

• Line the shelf with color-coordinated books, storage boxes with leather pulls, or seasonal keepsakes.

Pro Spatial Tip

The ceiling perimeter is often overlooked in small apartments; lifting book storage overhead keeps lower walls open for furniture and art.

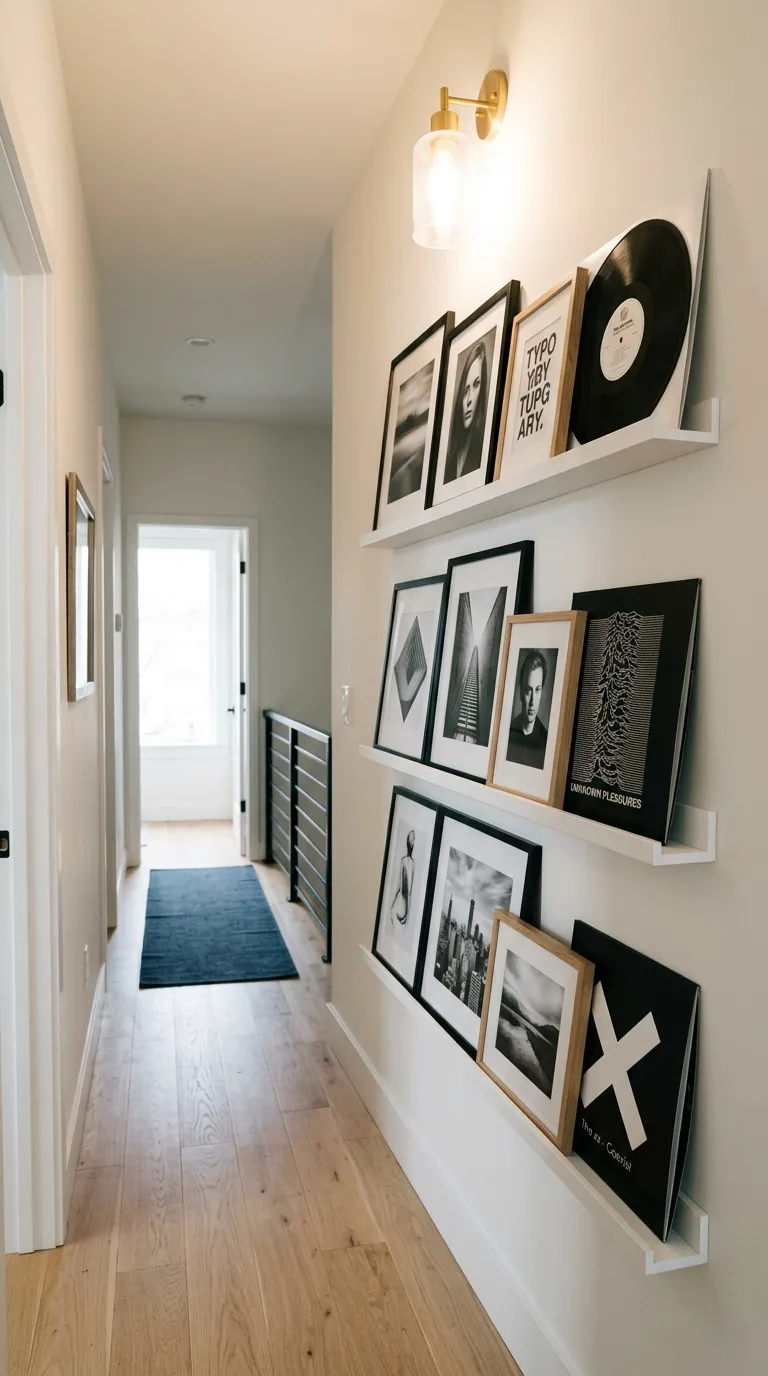

3. Ultra-Shallow Picture Ledges in Narrow Hallways

Concept Overview & Aesthetic Appeal

A minimalist gallery wall made of stacked 3.5-inch deep wooden picture ledges with a front lip, allowing you to layer art prints, records, and photographs without bumping into frames.

Step-by-Step Execution Guide

• Select three 36- to 48-inch long, 3.5-inch deep picture ledges with a 0.5-inch raised front lip.

• Mount the ledges vertically stacked on the wall spaced 14 inches apart, anchoring into studs or heavy-duty drywall anchors.

• Paint the ledges the exact same color as the hallway wall for a built-in architectural look.

• Layer framed artwork, vinyl records, and mini brass bud vases along the ledges, overlapping frames for curated visual depth.

Pro Spatial Tip

Picture ledges project only 3.5 inches from the wall, making them safe for high-traffic, narrow hallways where standard furniture would block the walkway.

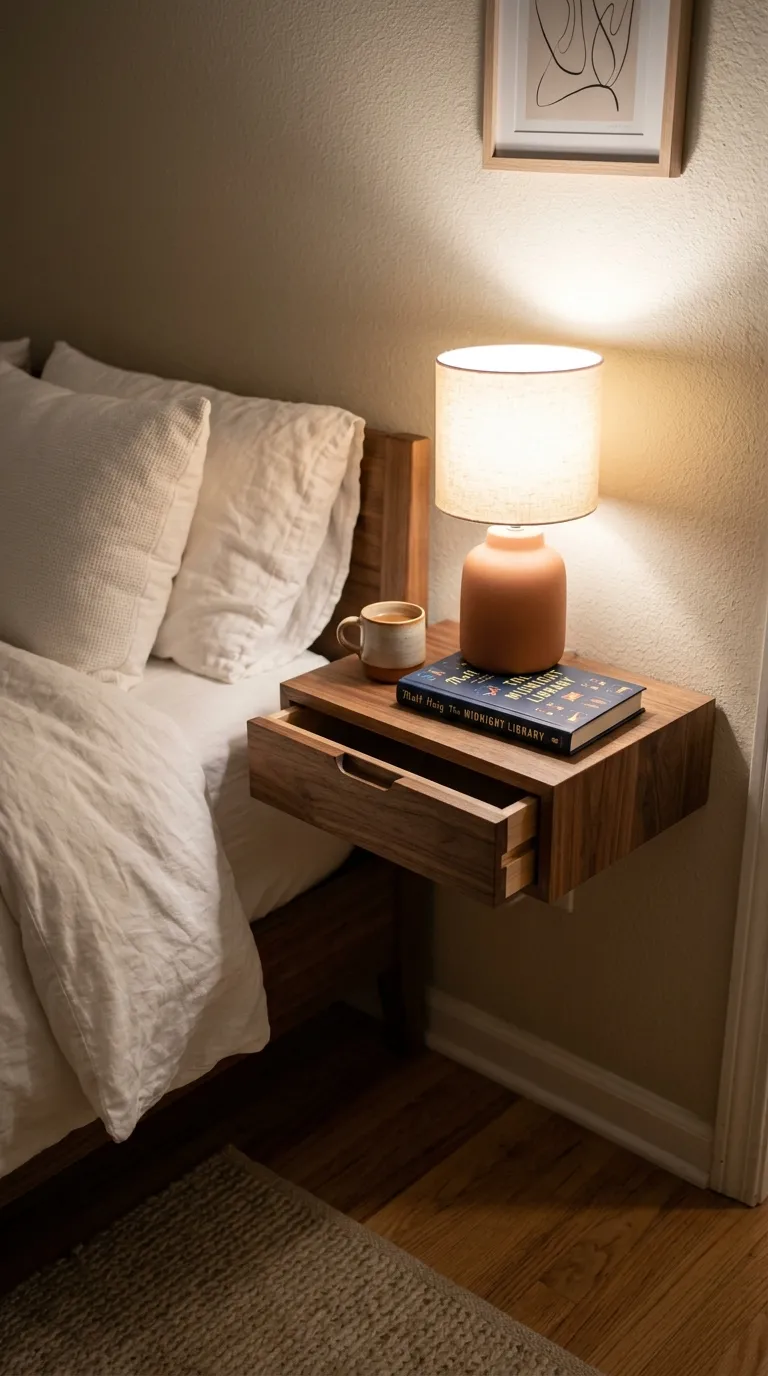

4. Floating Bedside Nightstand Shelf with Hidden Drawer

Concept Overview & Aesthetic Appeal

A compact, floating box shelf mounted beside the bed at mattress height, featuring a sleek push-to-open hidden drawer to keep glasses, chargers, and bedtime essentials off the floor.

Step-by-Step Execution Guide

• Build or source a $16times10times4$-inch floating wood box shelf equipped with an internal soft-close drawer mechanism.

• Mount an aluminum French cleat or heavy-duty keyhole brackets to wall studs at 24 inches above the floor (aligned with your mattress top).

• Drop the nightstand box onto the cleat and secure with locking set-screws.

• Drill a discrete 0.5-inch grommet hole in the rear corner to route phone charging cables cleanly down the wall.

• Top with a small modern lamp and a water carafe.

Pro Spatial Tip

Floating nightstands leave the floor underneath completely clear, making bedroom vacuuming effortless and providing space to tuck a pair of slippers.

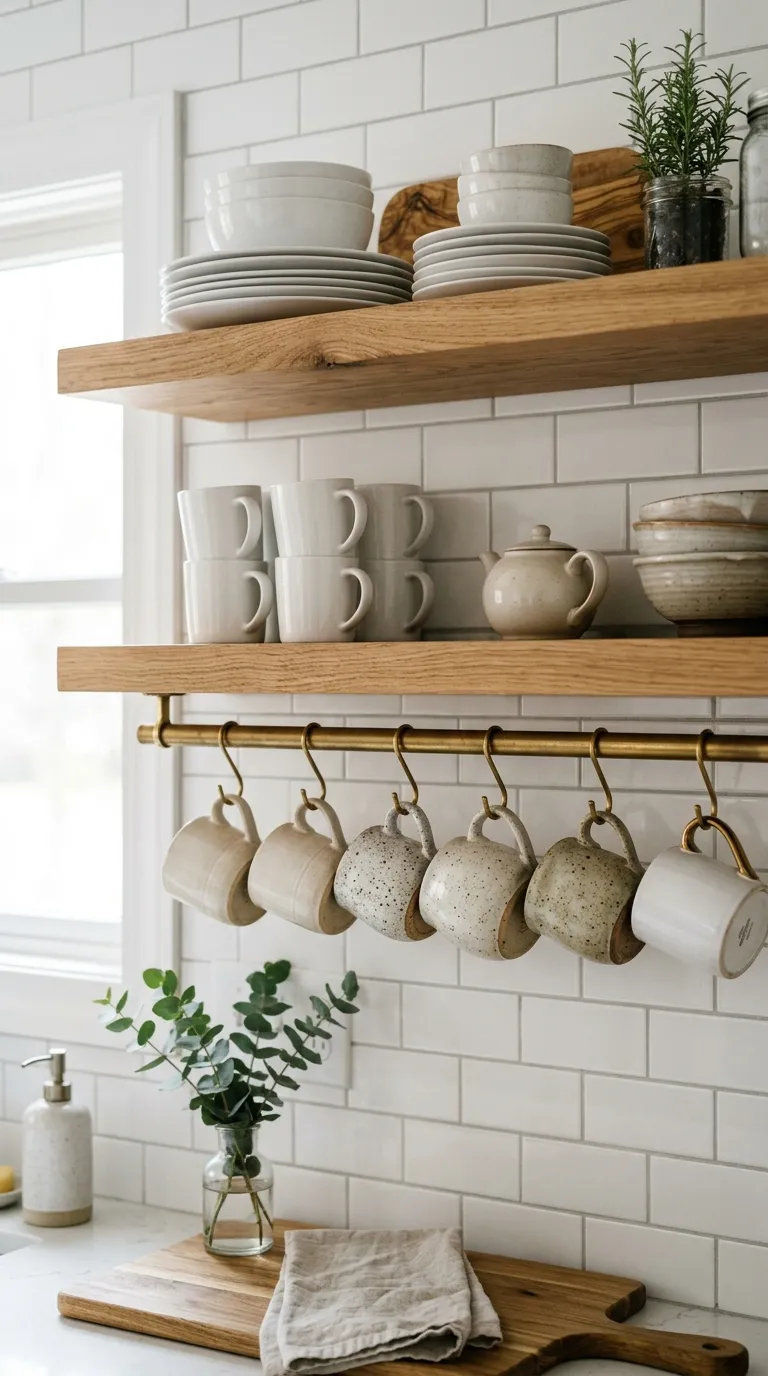

5. Kitchen Open Floating Shelves with Hanging Brass Mug Rail

Concept Overview & Aesthetic Appeal

Replace closed, bulky upper kitchen cabinets with two thick natural white-oak floating shelves, customized with a suspended solid-brass undermount rail and S-hooks for mugs and utensils.

Step-by-Step Execution Guide

• Install two 10-inch deep, 2-inch thick solid white-oak floating shelves over the kitchen counter, anchored into studs with heavy-duty steel rods.

• Fasten a 0.5-inch solid brass rod beneath the lower floating shelf using matching brass standoff brackets.

• Hang 6 to 8 brass S-hooks along the rail to hold ceramic coffee mugs, measuring spoons, and small pots.

• Seal the wood with water-resistant food-safe hardwax-oil to protect against steam and oil splatters.

• Stack everyday plates, bowls, and clear spice jars along the open shelves.

Pro Spatial Tip

Storing frequently used mugs and spices on open shelves speeds up morning routines while opening up visual sightlines in cramped galley kitchens.

6. Vertical Staggered Offset Display Tier

Concept Overview & Aesthetic Appeal

An asymmetrical, dynamic arrangement of short floating shelves (18 to 24 inches long) mounted in an offset, stepped pattern to display small potted plants and sculptures.

Step-by-Step Execution Guide

• Cut four 20-inch lengths of 1.5-inch thick walnut boards.

• Mark a staggered, offset layout on the wall, spacing each shelf 8 inches horizontally and 10 inches vertically from the one below it.

• Mount each shelf using two heavy-duty concealed rod brackets anchored into studs.

• Style the stepped shelves with a cascading mix of trailing houseplants (such as pothos or string of pearls), sculptural candles, and small ceramics.

Pro Spatial Tip

Staggered arrangements create an upward diagonal movement that makes low ceilings feel higher.

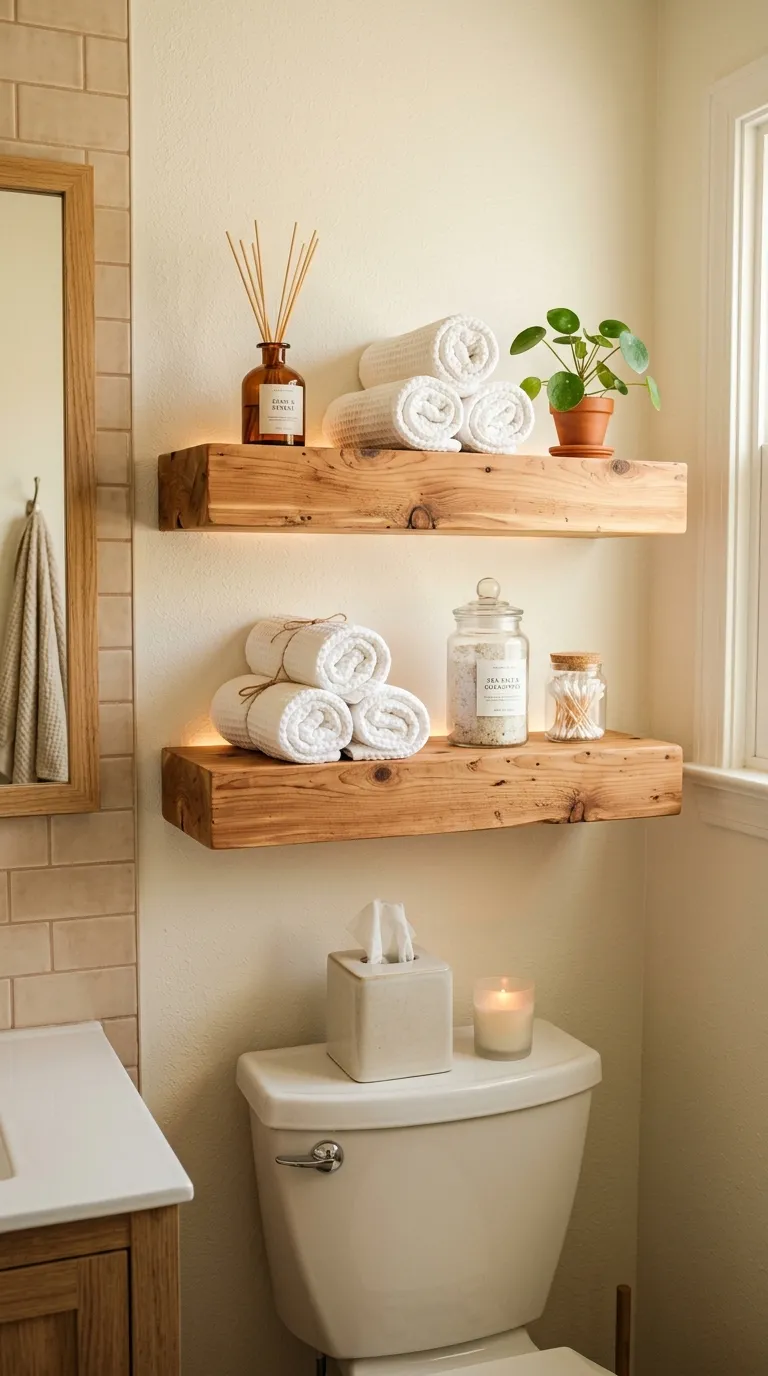

7. Over-the-Toilet Bathroom Floating Box Shelves

Concept Overview & Aesthetic Appeal

A spa-inspired bathroom storage upgrade featuring two thick natural cedar or teak floating shelves mounted directly over the toilet tank to store folded towels, apothecary jars, and room diffusers.

Step-by-Step Execution Guide

• Measure the wall space between the top of the toilet tank and the ceiling (typically 30 to 40 inches of open wall).

• Install two 8-inch deep, 2-inch thick moisture-resistant cedar floating shelves spaced 12 inches apart.

• Anchor brackets directly into wall studs or toggle bolts rated for 50+ lbs in moisture-resistant greenboard drywall.

• Use matte-black wire baskets or woven seagrass bins on the shelves to organize extra toilet paper rolls and toiletries out of sight.

• Add an amber glass reed diffuser and a small potted fern.

Pro Spatial Tip

Use naturally rot-resistant timber species like cedar, teak, or thermally treated ash to prevent wood warping in high-humidity bathrooms.

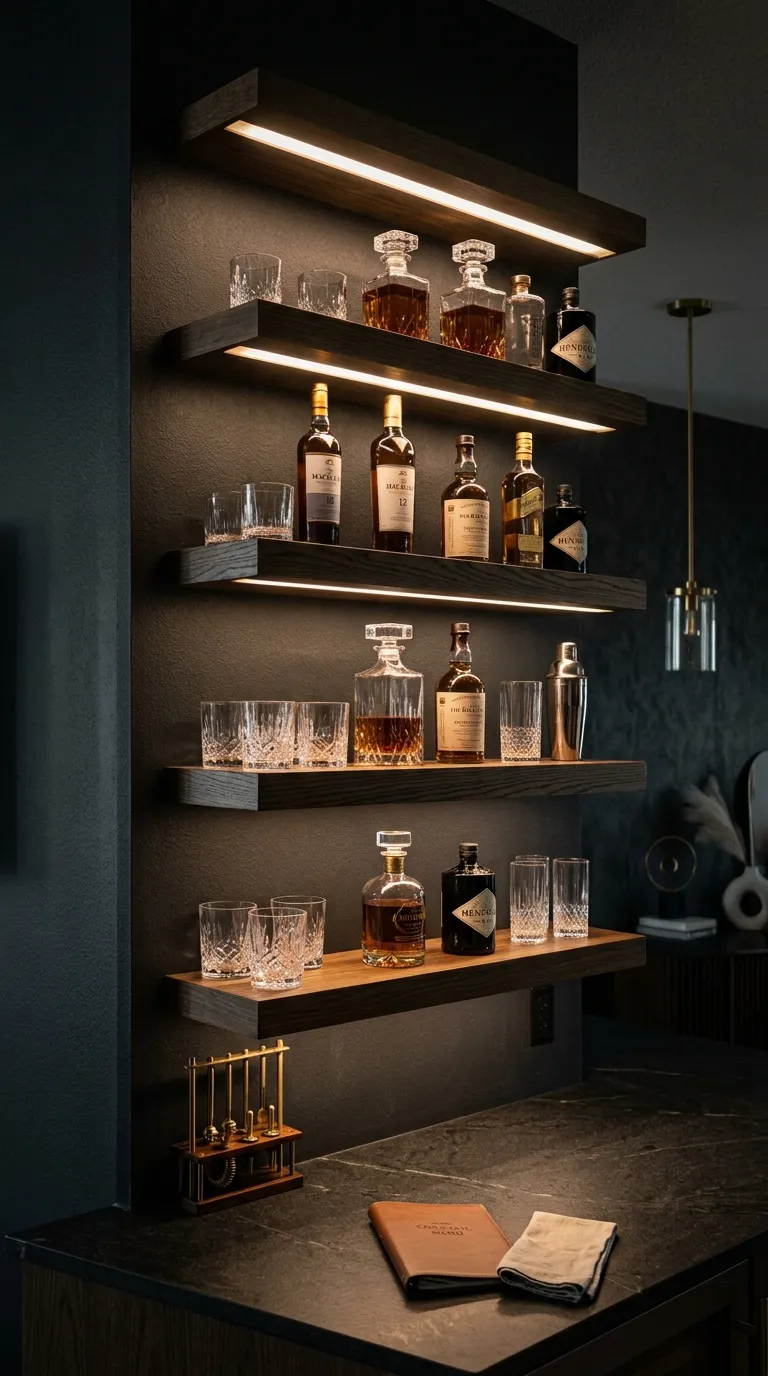

8. Recessed LED Strip Under-Glow Display Shelves

Concept Overview & Aesthetic Appeal

A high-end modern feature wall where floating shelves have a continuous channel routed into their underside, housing a warm-white LED diffusion strip that casts a soft downward glow.

Step-by-Step Execution Guide

• Route a 0.5-inch wide by 0.25-inch deep channel along the bottom length of a 2-inch thick floating shelf, 1 inch from the front edge.

• Install a low-profile aluminum LED channel track with a milky plastic diffuser lens inside the groove.

• Mount the shelf to the wall on steel bracket rods, routing the low-voltage LED power wire through a pre-drilled hole into the wall cavity.

• Connect the wiring to a wall dimmer switch or wireless remote.

• Place art glass, books, or barware on the shelf to catch the soft ambient downlight.

Pro Spatial Tip

Under-shelf lighting provides functional task lighting over desks and counters while eliminating the need for bulky tabletop lamps.

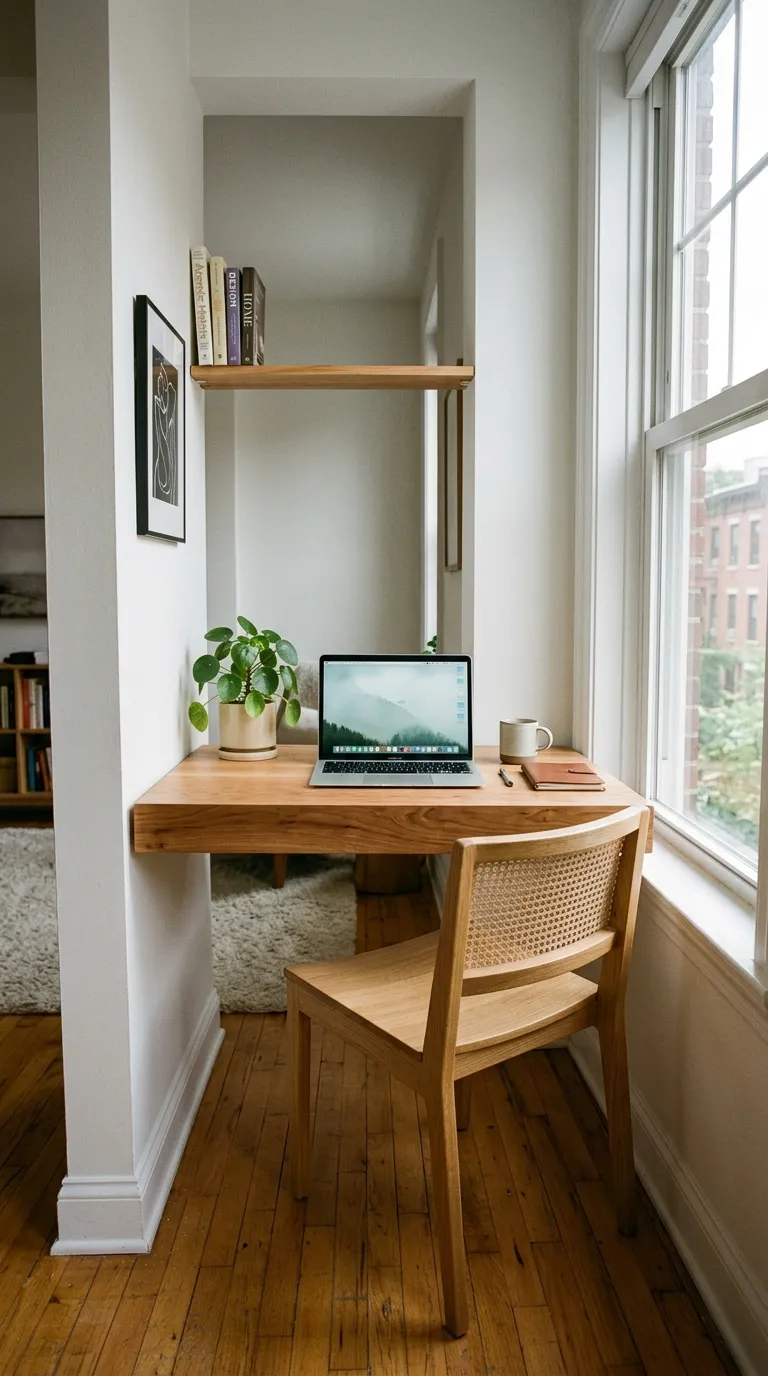

9. Minimalist Wall-Mounted Drop-Down Floating Desk

Concept Overview & Aesthetic Appeal

A deep floating shelf ($36times18text{ inches}$) mounted at standard seated desk height (29 to 30 inches) that functions as a compact home-office workstation with zero table legs.

Step-by-Step Execution Guide

• Cut a heavy-duty, 1.75-inch thick solid maple or birch hardwood slab to $36times18$ inches.

• Mount an industrial steel bracket system with four welded rods directly into at least three vertical wall studs.

• Slide the deep shelf onto the rods and lock from underneath with set-screws.

• Add a single, shallow floating shelf 15 inches above the desk surface for monitors, pencil cups, and desk accessories.

• Pair with a sleek, armless task chair that tucks completely under the floating desk slab when not in use.

Pro Spatial Tip

A legless floating desk leaves your chair’s rolling clearance unobstructed and allows small trash bins or PC towers to sit neatly underneath.

10. Crystal-Clear Invisible Acrylic Shelves

Concept Overview & Aesthetic Appeal

Ultra-modern shelves made from thick, transparent cast acrylic that appear to float invisibly against the wall, allowing books and perfume bottles to look suspended in mid-air.

Step-by-Step Execution Guide

• Select 0.25-inch thick polished clear cast acrylic U-shelves or flat ledges with polished beveled edges.

• Mount to drywall using low-profile chrome or brass screw caps and heavy-duty drywall anchors.

• Use in compact walk-in closets, vanity nooks, or kids’ reading corners to hold cosmetics, skincare products, or colorful books.

• The clear material allows 100% of light to pass through, creating zero visual shadow on the wall.

Pro Spatial Tip

Clear acrylic shelves have zero visual presence, making them ideal for ultra-tight powder rooms and vanity mirrors where wood would feel heavy.

Shelving Concept Comparison

Floating Shelf Concept	Shelf Depth	Primary Material	Weight Capacity	Best Room Placement
Wraparound Corner	8 – 10 Inches	Solid Oak / Mitered Joinery	50 – 75 lbs	Living room & studio corners
Perimeter High-Run	8 Inches	Birch / Pine Plank	75 – 100+ lbs	Home library & bedroom perimeter
Shallow Picture Ledges	3.5 – 4 Inches	Painted Pine / Oak Lip	15 – 25 lbs	Narrow hallways & entryway walls
Bedside Box Nightstand	10 – 12 Inches	Walnut / Hidden Drawer	30 – 40 lbs	Compact bedrooms
Kitchen Mug Rail Shelf	10 – 12 Inches	White Oak + Brass Rail	60 – 80 lbs	Galley kitchens & coffee bars
Staggered Offset Tiers	6 – 8 Inches	Hardwood Slabs	25 – 35 lbs each	Living room gallery & plant wall
Over-the-Toilet Shelves	8 Inches	Cedar / Teak (Waterproof)	30 – 40 lbs	Powder rooms & master baths
Under-Glow LED Shelves	8 – 10 Inches	Routed Timber + LED Channel	40 – 60 lbs	Media wall & home bar alcoves
Floating Workstation	18 – 20 Inches	1.75″ Thick Solid Maple	100+ lbs	Living room alcove / Home office
Invisible Acrylic Ledges	4 – 6 Inches	1/4″ Clear Cast Acrylic	15 – 20 lbs	Vanity nook & walk-in closet

Common Beginner Mistakes & How to Avoid Them

• Relying Exclusively on Plastic Drywall Anchors: Heavy floating shelves create downward leverage that pulls standard plastic drywall anchors straight out of the wall. Solution: Always mount floating shelf bracket rods directly into wooden or metal wall studs with heavy-duty structural screws.

• Selecting Shelves That Are Too Deep for the Bracket: Installing a 14-inch deep shelf on a bracket rod rated only for 8-inch shelves causes severe forward sagging. Solution: Ensure bracket support rods extend through at least 70% of the shelf’s total depth.

• Ignoring Wood Species Moisture Resistance in Bathrooms: Using unsealed pine or standard MDF in humid bathrooms leads to swelling, mold, and bubbling paint. Solution: Use naturally moisture-resistant woods (Cedar, Teak, White Oak) sealed with marine-grade spar varnish or hardwax-oil.

• Overcrowding Small Shelves with Clutter: Jamming every inch of a floating shelf with knick-knacks creates visual chaos. Solution: Apply the 60/40 rule—fill 60% of the shelf with books and curated items, leaving 40% open negative space.

Care & Maintenance for Floating Wall Shelves

Maintenance Task	Target Surface	Frequency	Recommended Technique
Dusting & Surface Care	Wood & Acrylic	Bi-Weekly	Dust with a dry microfiber cloth (use antistatic spray for acrylic)
Wood Conditioning	Solid Hardwood Slabs	Semi-Annually	Buff with natural beeswax paste or mineral oil to prevent wood drying
Bracket Tightness Check	Wall Stud Anchors	Annually	Check shelf level with a spirit level; tighten underside set-screws if sagging
LED Channel Inspection	Light Strips	As needed	Gently wipe diffuser lens to keep light output bright and clean
