10 Cheap Plastic Storage Tote Cat House Outdoor DIY Ideas

Plastic storage totes (such as 18-to-30-gallon Rubbermaid or Sterilite bins) are the gold standard for building cheap, durable, and 100% waterproof DIY outdoor cat houses. They cost between $8 and $15, resist heavy rain, snow, and wind, and can be fully insulated to protect feral, community, or barn cats all winter long.

Here are 10 cheap, practical outdoor plastic storage tote cat house DIY ideas with insulation tips, predator safety setups, and weatherproofing hacks.

Essential Rules for Plastic Tote Outdoor Cat Shelters

• Straw Only for Bedding (Never Hay, Blankets, or Towels): Blankets, towels, and hay absorb moisture and freeze solid in winter, robbing a cat of body heat. Clean golden straw repels moisture and allows cats to burrow in natural heat-trapping air pockets.

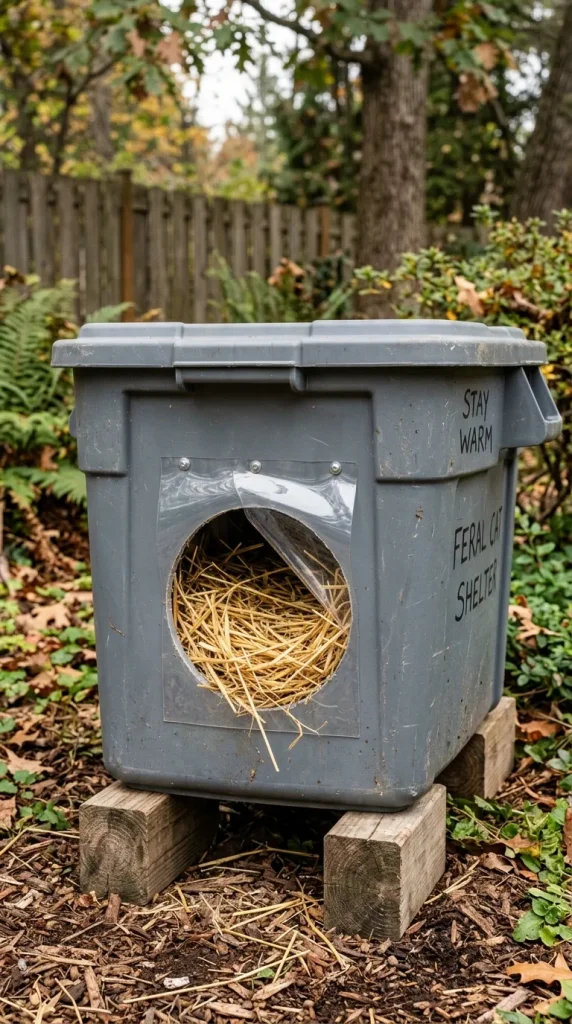

• Elevate Off the Ground: Place the tote on wooden pallets, bricks, or 2×4 wood blocks to prevent freezing ground temperatures and puddle water from chilling the plastic base.
• Cut Round 5.5 to 6-Inch Entry Holes: A 5.5 to 6-inch circle allows a cat in while keeping out larger predators like dogs, coyotes, and raccoons. Cut the hole 2 to 3 inches above the bottom rim so rain and snow don’t spill inside.
• Prevent Plastic Cracking When Cutting: Use a utility knife heated with a lighter, a hot knife tool, or a 5.5-inch hole-saw drill bit on low speed to slice through plastic smoothly without shattering the bin wall.

1. Classic Double-Tote “Box-Inside-a-Box” Insulated Shelter

The undisputed king of winter survival shelters! A smaller 18-gallon tote sits nested inside a larger 30-gallon tote, with the gap between them packed with 1-inch foam board insulation or spray foam for extreme sub-zero weather protection.

+-------------------------------------------------------------+
|              DOUBLE-TOTE INSULATED CAT SHELTER              |
|                                                             |
|   +-----------------------------------------------------+   |
|   | 30-GALLON OUTER PLASTIC STORAGE TOTE                |   |
|   | [ 1-INCH FOAM BOARD / MYLAR INSULATION GAP ]        |   |
|   |   +---------------------------------------------+   |   |
|   |   | 18-GALLON INNER PLASTIC TOTE                |   |   |
|   |   | Packed with Clean Golden Oat Straw          |   |   |
|   |   +---------------------------------------------+   |   |
|   | [ 5.5" ALIGNED CIRCULAR ENTRY WITH VINYL FLAP ]     |   |
|   +-----------------------------------------------------+   |
+-------------------------------------------------------------+

Key Build Steps

1. Cut matching 6-inch circular holes on the short side of both totes.
2. Line the bottom and sides of the large 30-gallon tote with 1-inch extruded polystyrene (XPS) rigid foam board.
3. Place the 18-gallon tote inside, align the doors, and bridge the gap with waterproof Gorilla tape or pipe insulation.
4. Fill the inner chamber half-full with clean straw and snap both lids securely shut.

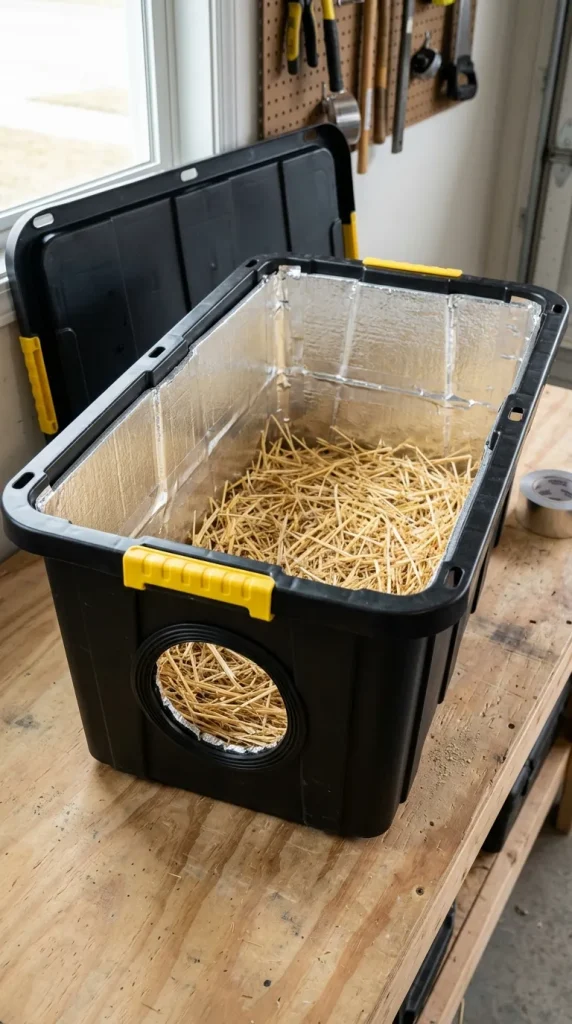

2. Single Tote Foam-Lined Economy Pod

Budget-friendly and fast! Built from a single 27-gallon heavy-duty black-and-yellow tote lined entirely on the inside with 1-inch foil-faced foam insulation boards glued with construction adhesive.

Key Build Features

• Materials: One 27-gallon tough tote, 1 sheet of foil-faced Polyiso foam board, foil tape, straw.
• Cost: Under $20 total.
• Weather Resistance: The reflective foil surface bounces the cat’s radiant body heat directly back into the nesting space.

3. Two-Door “Escape Hatch” Safety Shelter

Designed for feral colonies in areas with dogs, foxes, or coyotes. Featuring an entrance door in the front and an emergency escape exit in the rear, cats will feel secure knowing they cannot be trapped inside.

       +-------------------------------------------------+
       |         TWO-DOOR ESCAPE HATCH SHELTER           |
       |                                                 |
       |     [ SECURE SNAP-ON TOTE LID WITH WEIGHT ]     |
       |    /                                         \  |
       |  +---------------------------------------------+|
       |  | [ FRONT 5.5" DOOR ]     [ REAR ESCAPE DOOR ]||
       |  | (With Vinyl Flap)       (Offset Diagonal)   ||
       |  +---------------------------------------------+|
       |  | Foil Foam Lining & Thick Dry Straw Bedding  ||
       |  +---------------------------------------------+|
       |                                                 |
       +-------------------------------------------------+

Key Build Features

• Door Layout: Two offset 5.5-inch round holes on opposite diagonal corners to prevent wind from blowing straight through.
• Door Flaps: Clear vinyl strips (cut from heavy shower curtains) taped over the holes to keep out driving rain and snow.

4. Slanted-Lid Rain & Snow Runoff Shelter

Prevents water and heavy snow from pooling on top of the lid! Two wedge blocks are attached to the back of the tote lid, giving the roof a 15-degree pitch so moisture slides right off the back.

Key Build Features

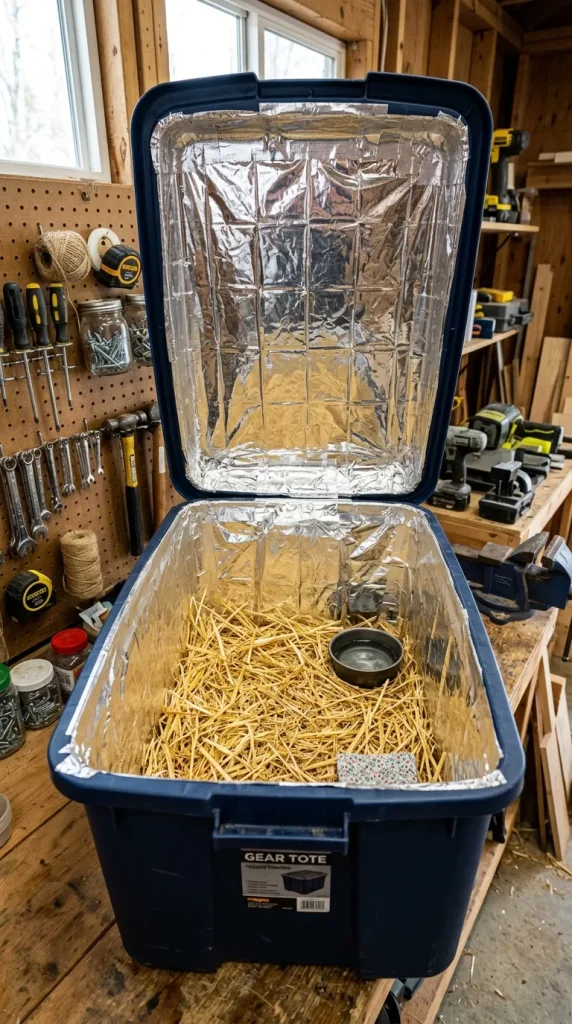

5. Mylar Emergency Blanket Solar Heat-Trapper

Uses high-grade space blanket technology! The interior plastic walls of a dark navy or black tote are wrapped in shiny mylar thermal blankets, which reflect 90% of radiant body heat while the dark exterior absorbs ambient sunlight.

+-------------------------------------------------------------+
|              MYLAR HEAT-TRAPPER CAT SHELTER                 |
|                                                             |
|   +-----------------------------------------------------+   |
|   | DARK NAVY/BLACK PLASTIC TOTE (Absorbs Solar Heat)   |   |
|   +-----------------------------------------------------+   |
|   | 3M SPRAY ADHESIVE + MYLAR REFLECTIVE SPACE BLANKET  |   |
|   | 100% Interior Wall and Ceiling Coverage             |   |
|   +-----------------------------------------------------+   |
|   | Thick Layer of Deep Nesting Straw on Floor          |   |
|   +-----------------------------------------------------+   |
+-------------------------------------------------------------+

Key Build Features

• Materials: Dark-colored storage tote, 3M spray adhesive, two $1 mylar emergency space blankets, foil tape.
• Advantage: Zero lost interior space compared to thick foam boards—ideal for smaller 18-gallon totes.

6. PVC Elbow Pipe Wind-Baffle Entryway

Stops frigid winter wind tunnels in their tracks! A 6-inch 90-degree PVC plumbing elbow or flexible dryer duct is fitted into the tote’s entry hole, forcing air to turn a corner and keeping the interior draft-free.

Key Build Features

• Entrance Hardware: 5-inch or 6-inch schedule 40 PVC elbow fitting inserted into the hole and silicone-caulked.
• Function: Cats crawl up and through the downward-pointing elbow; wind, rain, and snow cannot blow straight in.

7. Stacked Multi-Story Duplex Colony Condo

Two 30-gallon totes stacked vertically and joined with waterproof rivets or heavy-duty zip ties, providing separate upper and lower sleeping chambers for multi-cat feral colonies.

       +-------------------------------------------------+
       |           STACKED DUPLEX COLONY CONDO           |
       |                                                 |
       |   +-----------------------------------------+   |
       |   | UPPER SUITE: 30-GALLON TOTE (Straw Bed) |   |
       |   | Upper Side Entrance Hole with Awning    |   |
       |   +-----------------------------------------+   |
       |   | LOWER SUITE: 30-GALLON TOTE (Straw Bed) |   |
       |   | Lower Ground Entry + Off-Ground Blocks  |   |
       |   +-----------------------------------------+   |
       |                                                 |
       +-------------------------------------------------+

Key Build Features

• Configuration: 2 stacked bins with separate side entrances (or an interior floor-to-floor pass-through hole).
• Capacity: Accommodates 2 to 4 bonded cats without territorial fighting.

8. Low-Profile Under-Porch Crawlspace Shelter

Built from a wide, shallow 28-to-35-gallon under-bed wheeled plastic storage container designed to slide seamlessly under low decks, sheds, or porches out of human sight and wind exposure.

Key Build Features

• Tote Type: Long, shallow under-bed storage container (12 to 14 inches high).
• Advantage: Discreet and protected from high winds; easily hidden under mobile homes or backyard decks.

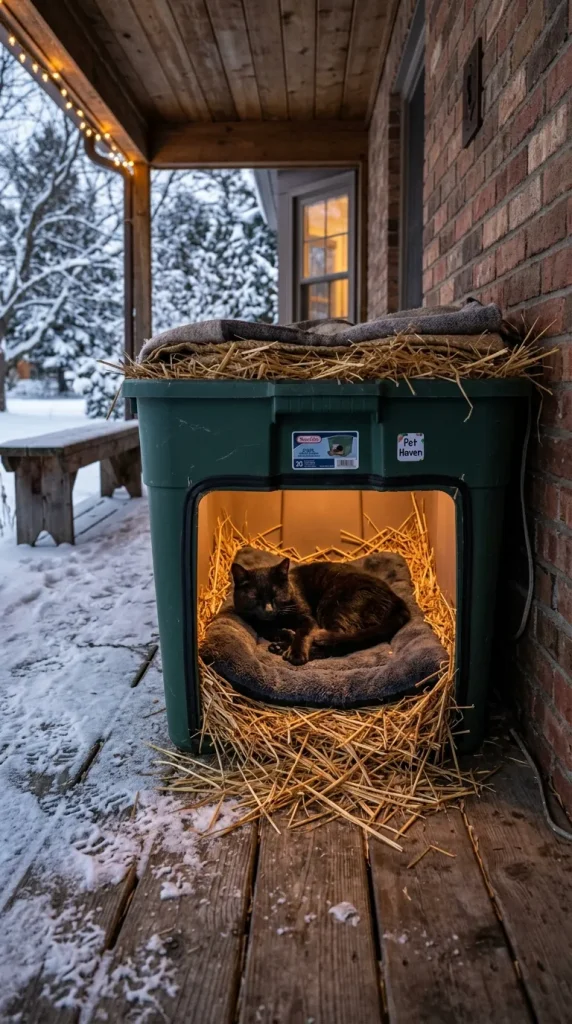

9. Outdoor Heated-Pad Winter Haven (For Covered Outlets)

If you have access to an outdoor GFCI electrical outlet on a covered porch or barn, a MET-safety certified outdoor pet heating pad is sealed inside the bottom of an insulated tote.

+-------------------------------------------------------------+
|              OUTDOOR HEATED PAD WINTER HAVEN                |
|                                                             |
|   +-----------------------------------------------------+   |
|   | 20-GALLON STORAGE TOTE WITH FOAM BOARD INSULATION   |   |
|   +-----------------------------------------------------+   |
|   | CHEW-PROOF STEEL CORD EXIT NOTCH (Sealed with Caulk)|   |
|   +-----------------------------------------------------+   |
|   | WATERPROOF ORTHOPEDIC OUTDOOR HEATED PET BED        |   |
|   | Light Straw Border Around Pad (Never Cover Heat Pad)|   |
|   +-----------------------------------------------------+   |
+-------------------------------------------------------------+

Key Build Features

• Electronics: Water-resistant, chew-proof cord outdoor heated pet mat (stays at a cat’s natural 102°F body temp).
• Safety Note: Cut a tiny notch in the upper corner for the cord and seal with 100% silicone caulk. Never cover the pad with thick blankets.

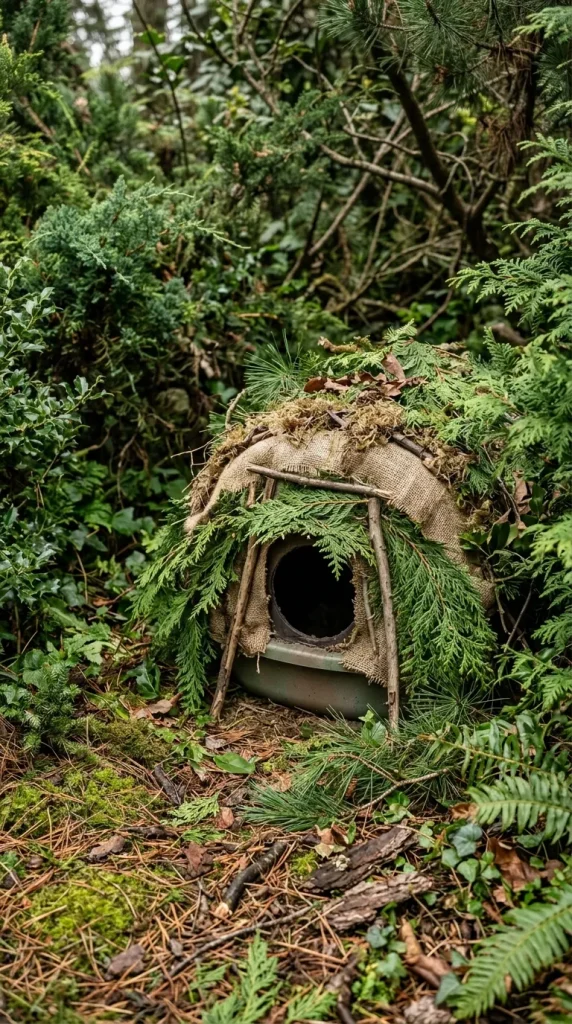

10. Camouflaged Earth-Tone Yard Stealth Shelter

To keep feral shelters from being disturbed by neighbors or property managers, a brown, olive green, or forest camo-wrapped tote blends seamlessly into backyard hedges, brush piles, or landscaping.

Key Build Features

• Disguise Techniques: Spray-paint the tote with matte brown/green textured spray paint for plastic, or wrap with burlap and artificial cedar boughs.
• Placement: Nestled inside evergreen bushes with only the small entrance hole exposed.
